LCD display differential pressure transmitter
Description
The basic principle of differential pressure transmitter The differential pressure from the double-sided pressure guiding pipe directly acts on the double-sided isolation diaphragm of the transmitter sensor, and is transmitted to the measuring element through the sealing liquid in the diaphragm, and the measuring element will measure the difference. The voltage signal is converted into a corresponding electrical signal and transmitted to the converter, and becomes a standard electrical signal output after processing such as amplification.

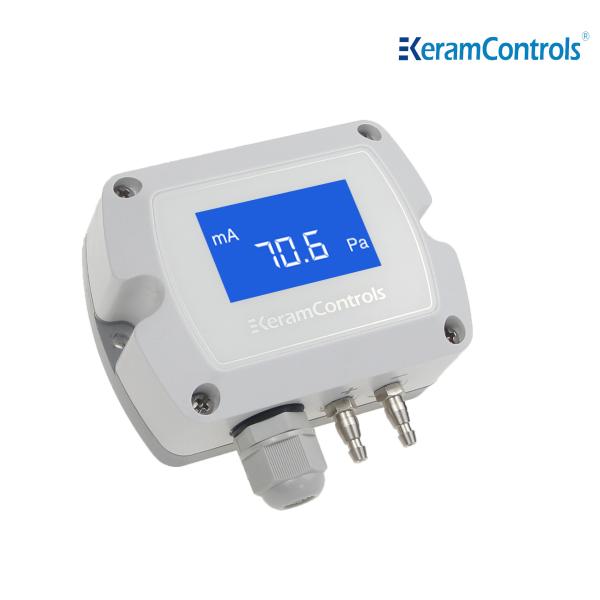

The KDP210 series differential pressure transmitter is a transmitter specially designed for differential pressure measurement. It is equipped with a backlit display, which can monitor the changes of data well. However, it should be noted that the storage temperature of this equipment needs to be within -40~+60 °C, otherwise it will affect the life of the equipment.
Feature
- Ranges from -25/+25Pa to -10000/+10000Pa (according to models)
- Auto zero manual calibration
- Voltage, current, digital signal output
- Standard accuracy <±1% FS
- IP65 house protection
Application
- HVAC system
- Pharmaceutical clean rooms
- Electronic clean rooms
- Medical clean rooms
- Commercial buildings
- Public transport hub
Technical data
| Model | KDP210 |
| Measurement Units | Pa,mmH2O,inWG,mmHG,KPa,mbar |
| Accuracy | <±1% FS@-5 to +65℃ |
| Response Time | 0.5s |
| Repeat Stability | ±0.01 % at FS /Year |
| Resolution | 0.1 Pa; 0.1 mmH2O; 0.01mbar; 0.01mmHG |
| Media | Air and neutral gases |
| Operating Temperature | -20…+70℃ |
| Storage Temperature | -40…+60℃ |
| Power Consumption | ＜1.5W |
| Tolerated over pressure | x15 |
| Power Supply | 16~30VAC/DC (3wire) / 18~30VDC (2wire) |
| Output Signal | 4-20mA(2wire) |
| 4-20mA(3wire) |
| 0~5V/0~10VDC(3wire) |
| RS-485 |
| Customized |
| Auto Zero | Manual calibration |
| Housing Material | PC&ABS,UL94V-0 |
| Protection Class | IP65/NEMA4 |
| Display | Backlight LCD display(4-20mA 2 wire without backlight) |
| Cable Gland | M16*1.5 |
Dimension(mm)
Measuring range adjustment
Output setting(3 wire Model)
Manual Zero-point correction
Ordering guide
KDP210-Range-display-output
| Model | Ranges | Display | output |
| KDP210 | -100~+100Pa | (1) | LCD backlight | (D) | 4-20mA(2 wire) | (E) |
| -1000~+1000Pa | (2) | | | 4-20mA(3 wire) | (F) |
| -2000~+2000Pa | (3) | | | 0-5/0-10VDC (3 wire) | (G) |
| -10000~+10000Pa | (4) | | | RS-485 | (H) |
| | | | | Customized | |
FAQ
1 Q: What's the delivery time?
A: According to the specification and quantity of your order, generally 4
days for normal standard products within 10pcs.
2 Q:Are you manufacturer or trading company?
A: We are manufacturer with many years of experience.We have our
own factory.Welcome to visit our factory.
3 Q: Can we use our logo on the products?
A: Yes.We can provide OEM service.
4 Q: Do you have products with ex-proof certificate?
A: Yes,we can offer intrinsic-safety and flame proof certificates.
5 Q: What is the warranty of your products?
A: Normal is 12 months.
6 Q: What's the means of transport?
A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
